10a - Advanced PCB design techniques for cost-effective SI, PI and EMC in 2021

Provides 7 hours towards CPD

Read more about CPD with EMC Standards

Included with Subscription.

10a - Advanced PCB design techniques for cost-effective SI, PI and EMC in 2021 image #1

Updated for 2021!

Module 10A (replaces Module 10)

This course is designed to help design engineers:-

– Reduce cost by eliminating enclosure shielding

– Reduce interference with co-located wireless datacoms (e.g. increase receiver range for GSM, GPRS, 3G, 4G, etc.)...

– Allow co-located GPS antennas...

– Use RF power devices (including isolating DC/DC)...

– Make high-speed processors / DSP function correctly (achieve good signal integrity, SI, and power integrity, PI)...

– Use the latest IC technologies (e.g. 15nm or smaller silicon processes), BGAs and ‘chip scale’ packages...

– Reduce time to market and compliance costs

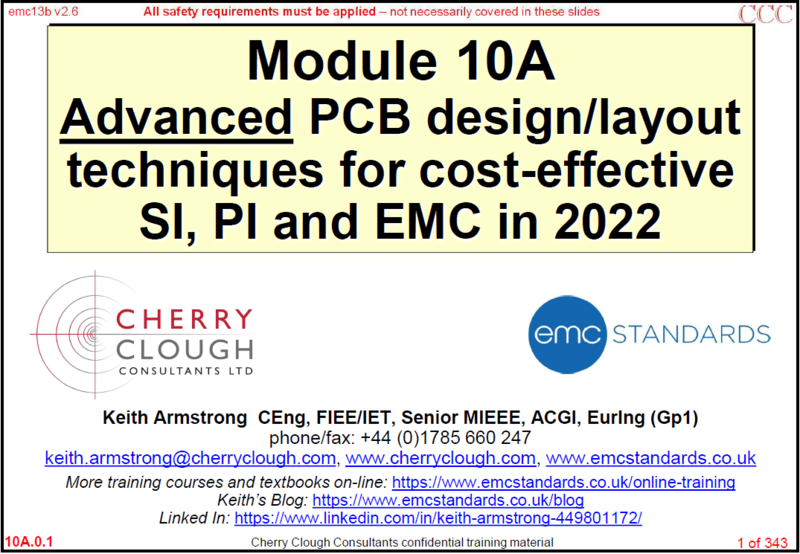

Module is 343 slides over 171 pages


1. When should we use advanced PCB techniques?
2 Future trends and their implications
3 Guidelines, approximations, simulations, and virtual design for SI, PI and EMC
4 Advanced segregation (zoning) techniques
5 Advanced interface filtering and suppression, including BLS (board-level shielding) to tens of GHz
6 Advanced RF-bonding PCB Reference Planes at EMZ boundaries
7 Advanced PCB planes and co-locating radio/TV/datacom antennas
8 The totally shielded board assembly
9 Damping the resonances in parallel planes, plus :Virtual Ground Fences, Electromagnetic Band Gaps, High Impedance Surfaces
10 Advanced PCB decoupling
11 Buried components, especially buried capacitance decoupling
12 Not used in this version!
13 Advanced transmission lines, including differential signalling up to 32Gb/s
14 Microvia (HDI) board manufacturing techniques
15 Future developments:3-D Moulded PCBs, and Additive Manufacturing; replacing PCBs with SIF
16 Advanced crosstalk
17 Some final tips and tricks
18 Some useful contacts, sources, and references
